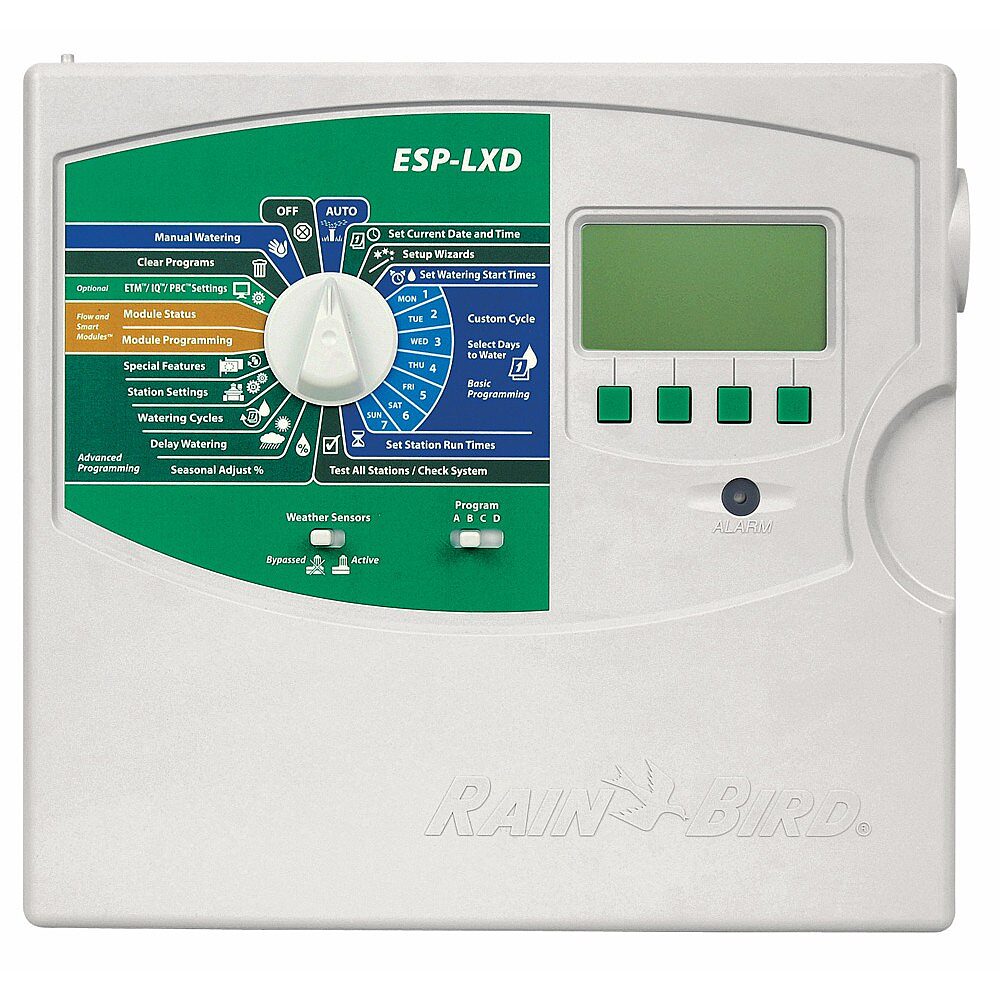

The ESP-LXD controller has been designed to maintain the look, feel and ease of programming of the ESP-LXME controller but with an interface to a two-wire path for decoder-based irrigation. The ESP-LXD controller can manage up to 50 stations but can easily be expanded for use with up to 200 stations. Flow Management is also built into every ESP-LXD controller.

• 50-station capability standard expandable to 200 stations with optional ESPLXD-SM75 modules
• Four available sensor inputs (one wired plus up to three decoder managed) with override switch
• Five flow sensors supported
• Supported decoders: FD-101TURF, FD-102TURF, FD-202TURF, FD-401TURF, FD-601TURF
• Supports SD-210TURF sensor decoders (flow sensing and weather sensor support) and LSP-1 line surge protectors (one per 500 feet of two-wire path required)
• Central Control capable with Rain Bird IQ Communications Cartridges and software (see pg. 102)
• Advanced Features From Cycle+Soak? to Contractor Default Program?, the ESP-LXD offers innovative features proven to cut installation expenses, troubleshooting time and water use
• Program backup and barcode decoder address entry with the optional PBCLXD
• Six user-selectable languages
• Removable front panel is programmable under battery power
• Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal
• Compatible with Rain Bird Landscape Irrigation and Maintenance Remote - Flow Smart Module? factory installed or field upgradable
• Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal
